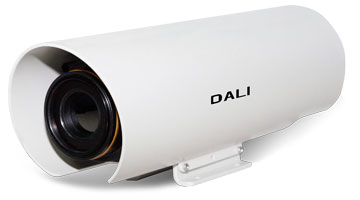

Home >> Online observation thermal imaging camera >> DLD-J Series

◆ 384×288, Uncooled FPA microbolometer

◆ 50HZ realtime imaging

◆ Optional brightness/gain configuration adjustment for your easy operation in different condition of environment

◆ IP66

Especially suitable to the day/night surveillance in residential district, park, dock, road, bridge, etc

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Items		DLD-J40	DLD-J75
Detector Characteristic	Detector type	Uncooled FPA microbolometer
	Array size/format	384×288
	Detector pitch	25μm
	NETD	≤100mK@f/1,300K
	Frame rate	50Hz
	Wave range	8-14μm
Lens	Focal length	40mm	75mm
	FOV	13.7°*10.3°	7.3°*5.5°
	Lens type	Motorized focus
Measurement	Brightness/gain	Manual brightness/gain; Automatic brightness/manual gain; Automatic brightness/gain
	Polarity reversal	Black hot/white hot
	Electronic zoom	2x
	Calibration	Auto/Manual
	Noise reduction	Yes
	Enhancement	Yes
	Automatic brightness/gain configuration adjustment	2 fixed patterns, 8 user-defined modes
Power supply	Power Supply	10-15V DC
	Consumption	≤6W（Normal operating at 25℃ ambient temperature condition）
Environment requirement	Work temperature	-20℃-+55℃
	Storage temperature	-45℃-+65℃
Physical characteristics	Weight	＜2kg	＜2kg
	Dimension	130mm96mm305mm
	Encapsulation	IP66
Interface	Power interface	Yes
	Video Output	PAL
	Control protocol	RS485（PELCO-D/P）
Observation range (M)	1.8x0.5m Human(detection)	1320m	2475m
	2.3x2.3m Car(detection)	1840m	3450m
	1.8x0.5m Human(Identification)	440m	900m
	2.3x2.3m Car(Identification)	610m	1150
