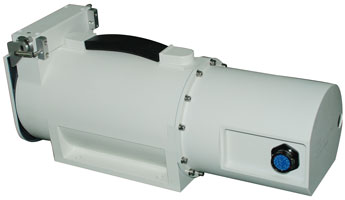

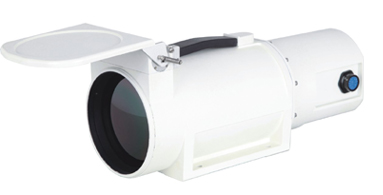

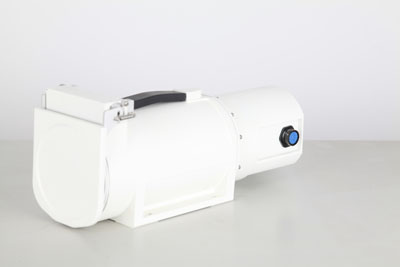

DLD-M240
Features
◆ Cooled 320*256 pixel HgCdTe cooled FPA detector
◆ 50HZ full real-time image, ultra long range observation range.
◆ Fast auto focus.
◆ Dual FOVS, meet different range requirements.
◆ Multiple user defined auto mode, meets observation requirement of different targets.
◆ Digital Detail Enhancement（DDE）.
◆ Standard interface, easy integration.
◆ IP67 protection encapsulation, nitrogen inside to prevent corrosion, water and dust proof, quakeproof
Application

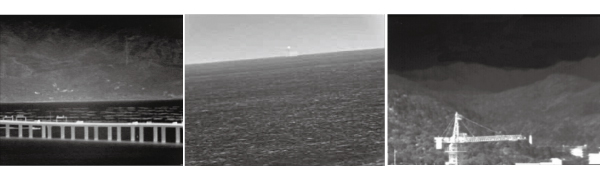

Suitable for border, maritime, custom suppress smuggling, bridge etc. where requires day and night surveillance.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
|
Item |
Technical specifications |
|
|
Detector |
Detector type |
HgTeCd Cooled FPA detector |
|
Array size/format |
320×256 |
|
|
Image characteristics |
Field of view/min focus distance |
WFOV: 9.2°×7.3°/5m |
|
Focal length |
240/60mm |
|
|
Spatial resolution |
WFOV: 0.5mrad |
|
|
FOV switch time |
≤2s |
|
|
NETD |
≤20mk@30℃，F2 |
|
|
Frame frequency |
50HZ |
|
|
Focus |
Auto/Electrical manual focus |
|
|
Spectral range |
3.7-4.8μm |
|
|
Thermal operation |
Starting time |
<8min（In normal temperature 25 degrees） |
|
Brightness/gain adjustment |
manual brightness/gain adjustment；auto brightness/gain adjustment |
|
|
auto brightness/gain configuration adjustment |
2 fix pattern，8 user defined setting pattern |
|
|
Polarity reversal |
Black hot/White hot |
|
|
zoom |
2x |
|
|
Noise reduction |
Yes |
|
|
DDE |
Yes |
|
|
Calibration |
Automatic and manual calibration |
|
|
Crosshair |
Display/Hidden |
|
|
Power system |
External power supply |
24±3V DC |
|
Power consumption |
<14W（<14W (In normal temperature 25℃ normal work） |
|
|
Environment |
Operating temperature |
-40℃- +55℃ |
|
Storage temperature |
-45℃- +65℃ |
|
|
Encapsulation |
IP67 |
|
|
Physical Characteristics |
Weight |
≤8Kg |
|
Dimension |
417mm×147mm×179mm |
|
|
Interface |
Power interface |
有 |
|
Video output |
PAL |
|
|
Communication protocol |
PELCO-D/P , DALI |
|
|
Remote Control |
RS485 |
|
