DM60 — Online monitoring



Features



◆ 384 x 288 uncooled FPA detector

◆ Real time image

◆ Front end temperature measurement, high accurate.

◆ MPEG4 online video record and transmission.

◆ Auto Focus

◆ Multiple ports, easy for integration.

◆ offer SDK free.



Application

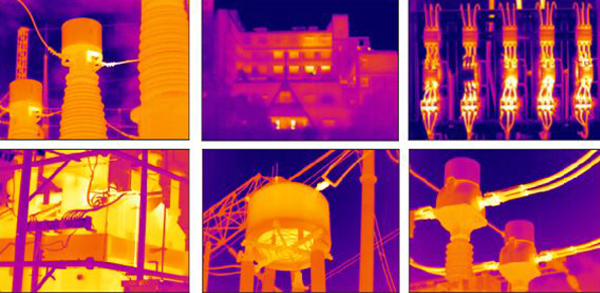

Suitable for industrial process control , Electronic non-touch temperature measurement, electric fault detection and thermal field analysis .





SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.





SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.



Item

DM60-40

Detector characteristics

Detector

Uncooled FPA microbolometer

resolution

384×288

Pitch size

35μm

Spectral range

8~14μm

Thermal Image

IFOV

0.88mrad

FOV/Min Foucs

16°×12°/0.5m

Thermal sensitivity

≤0.06℃@30℃

Frame Frequancy

50/60HZ

Focus

Auto/Manual focus

Measurement Function

Measurement range

-20 ℃~+500 ℃

measurement correction

Auto/Manual

Measurement accuracy

±2℃ or ±2% of reading, whichever is greeater

Measurement mode

Up to 4 movable spots. Up to 3movable areas

Color Palette

11 palettes available(including iron red, rainbow,balck/white etc)

image adjustment

Auto/manual Gain,brightness

Setup function

Temperature unit,language,IP address

Emissivity correction

Variable from 0.01to 1.0

ambient temperature correction

Automatic correction according to user input.

Atmospheric transmission correction

automatic correction according to the user input of object distance,relative humidity,ambient temperature

Image storage

Raw image capture

Raw images realtime transfer cia client control software,the images are analyzable and measureable

Image storage

MPEG-4ideorecording raw data transmission. Single image capture BMP

Power Supply

Power in

10~15V DC

Power consumption

≤6W(@ 25℃normal operation)

Environment

Operating temperature

-15℃~ +50℃

Storage temperature

-40℃~+60℃

Encapsulation

IP40

Physical characteristics

Weight

≤1.09Kg(W/O lens)

Size

260mm×92mm×82mm



Interface

Power port

YES

Analog video output

PAL/NTSC

Digital video output

RJ-45 Ethernet output, H.264 digital video / raw measurement data

Serial Port

RS485

Ethernet Port

RJ-45 to transfer the image ,data and device control

Alarm output

I/O alarm output
