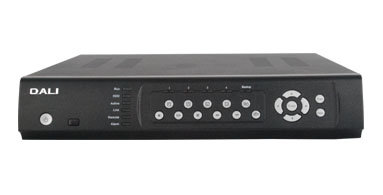

DV-DVR404DB DVR

Cost effective and small size

◆ 2 CH D1+2 CH CIF real-time or full CH D1 unreal-time recording
◆ 4CH playback synchronously
◆ Support PPPoe,DHCP,DDNS
◆ IPHONE, Android, Symbian and Windows Mobile for 3G live viewing
◆ Schedule record, preset 120 schedule tasks
◆ USB2.0 for quick backup
◆ Build in web function, IE access ◆ Alarm email function
◆ Dual stream bit ◆ Support removable DVD writer

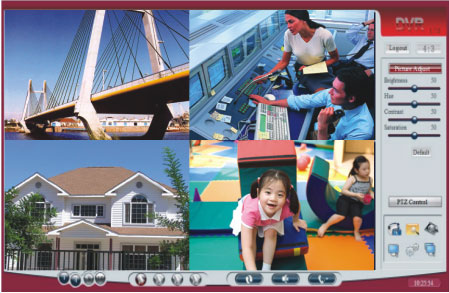

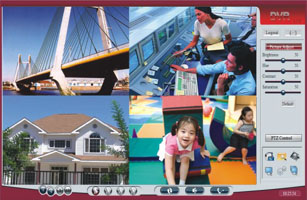

Perfect network function

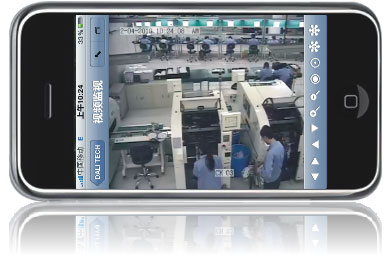

Cell phone viewing

MODEL
DV-DVR404DB
 Main processor  Embedded High Performance processor
 Operation system  Embedded RTOS
VIDEO
 Format  PAL/NTSC
 Video Compression  H.264(Main Profile)
 Image Compression    JPEG

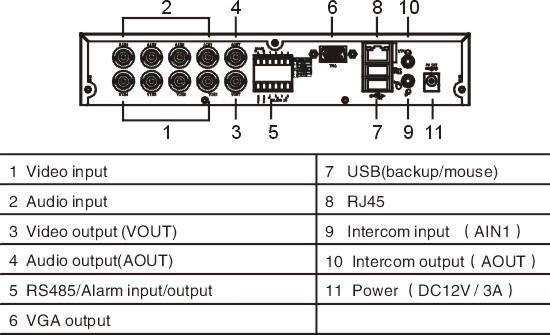

 Input  4 CH, BNC(1.0Vp-p,75Ω)
 Output  1CH BNC(1.0Vp-p,75Ω)
 VGA  1CH VGA(800×600,1024×768,1280×1024)
AUDIO
 Compression  ADPCM
 Input  1CH BNC(linear voltage,10.0KΩ)
 Output  1CH MiniJACK
 Intercom     1 CH MiniJACK, support passive micphone input
DISPLAY
 Resolution  D1: 704×576(PAL) 704×480 (NTSC)
 Division  1/4CH
RECORD
 Resolution  CIF: 352×288(PAL)  352×240(NTSC)
 HD1:704×288(PAL)  704×240 (NTSC)
 D1: 704×576(PAL)  704×480 (NTSC)
 Frame rate  CIF: 25(PAL)/30(NTSC)FPS
 D1:  13(PAL)/15(NTSC)FPS
 2CH: D1(25/30fps) & others: CIF(25/30fps)
 Quality   3 Levels (Medium,Good,Best)
 Mode   Manual, Motion Detection, Timing, Alarm trigger, Auto Start
 Video output stream  16k-1.5M bps adjustable
 Playback  4CH playback synchronously
HDD
 Basic storage  1 SATA interface,Max.2T/HDD
ALARM
 Input  4CH
 output  1CH
OTHER
 System resource  Multi-CH recording, Playback, Network Operation, Remote Backup and Monitoring simultaneously
 Network  RJ45, auto adapt 10/100M Ethernet, support PPPoE, DDNS, DHCP
 USB device  2 USB2.0, support Flash Memory, Remote HDD, Removable DVD Writer and Mouse
 Communication port    RS485, Support RS232
 Power supply  DC 12V/3A
 Power(without HDD)  ‹10W
 Weight  2.3KG
 Device dimension  250×260×50 mm(W×D×H)
 Package dimension     350×305×105 mm(W×D×H)
 Operating environment  Humidity:10~90% RH, Temperature:-10℃~55℃
