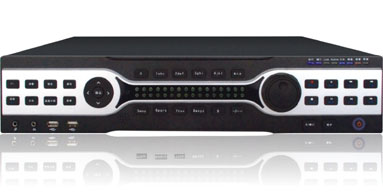

DVR600T4 Series DVR
-
16CH Full D1
-
Cell phone viewing -
Intelligent
| ◆ Full CH D1 realtime recording | |
| ◆ 16 CH playback synchronously | |
| ◆ IPHONE, Android, Symbian and Windows Mobile for 3G live viewing | |
| ◆ Main,spot,matrix video output independently | |
| ◆ HDMI 1080P video output | |
| ◆ Graphical interface for search&playback | |
| ◆ Electronic zoom in live | |
| ◆ Build-in E-map view | ◆ Support alarm email function |
| ◆ Dual stream bit | ◆ SATA HDD, eSATA extension port |

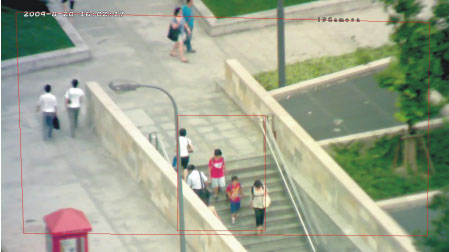

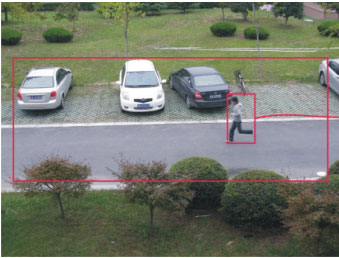

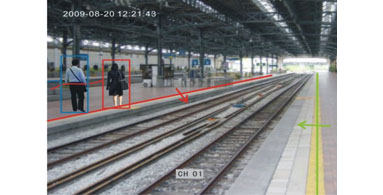

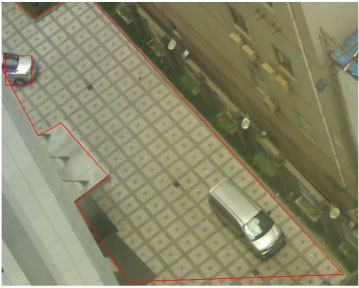

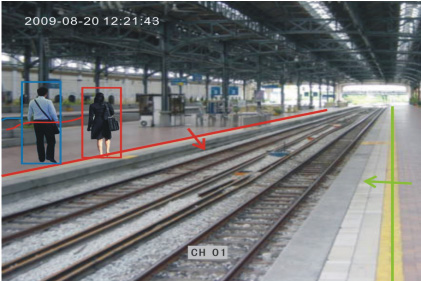

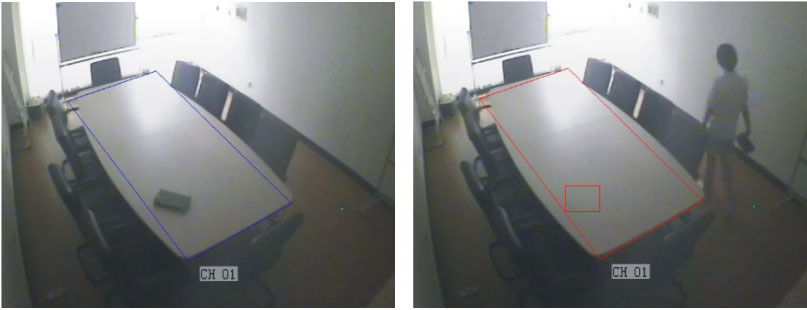

Intelligent analyse
HDMI output

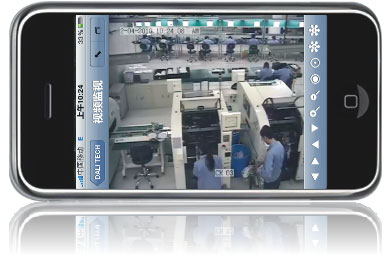

Cell phoe viewing
|
Model
|
DV-DVR604T4
|
DV-DVR608T4
|
DV-DVR616T4
|
|
| Main processor | High Performance Embedded processor | |||
| Operation system | Embedded RTOS | |||
| VIDEO | ||||
| Format | PAL/NTSC | |||
| Video compression | H.264 (Main Profile) | |||
| Picture compression | JPEG | |||
| Video input | 4/8/16 CH BNC (1.0Vp-p,75Ω) | |||
| Main video output | 1CH VGA（800×600，1024×768，1280×1024） Or 1CH HDMI（Max support 1920×1080p@30fps,1920×1080i@60fps,adaptive output） |
|||
| Spot video output | 1CH BNC (1.0Vp-p,75Ω)，independent OSD | |||
| Matrix video output | 1CH BNC (1.0Vp-p,75Ω)，support group circular monitoring | |||
| AUDIO | ||||
| Compression | ADPCM | |||
| Input | 4/8/16CH BNC (linear voltage,10.0KΩ) | |||
| Output | 1CH RCA(linear voltage,1.0KΩ) | 2 CH RCA (linear voltage,1.0KΩ) | ||
| Intercom | Independent CH for intercom（MiniJACK） | |||
| DISPLAY | ||||
| Resolution | D1: 704×576(PAL) 704×480 (NTSC) | |||
| Division | 1/4/6/9/13/16 split screen, with e-map preview mode | |||
| RECORD | ||||
| Resolution | QCIF：176×144(PAL) 176×120(NTSC) CIF：352×288(PAL) 352×240 (NTSC) HD1： 704×288(PAL) 704×240(NTSC) D1： 704×576(PAL) 704×480 (NTSC) |
|||
| Frame rate | 25(PAL)/30(NTSC) FPS all real time, flexible | |||
| Quality | 5 Levels (Basic,Medium,Good,High,Best) | |||
| Mode | Manual, motion detection, Timing, Alarm trigger, Auto start. | |||
| Video output stream | 16K-2Mbps adjustable | |||
| Playback | MAX.4 CH synchronously | MAX.8 CH synchronously | MAX.16 CH synchronously | |
| HDD | ||||
| HDD interface | 8 SATA interface , Max.2T/HDD，support 1 eSATA interface | |||
| mode | Customize HDD's r/w attribute | |||
| Alarm | ||||
| Input | 4 CH | 8 CH | 16 CH | |
| Output | 4 CH | |||
| Other | ||||
| System resource | Multi-CH recording, playback, network operation and monitoring simultaneously | |||
| Network | RJ45,auto adapt 10/100/1000M Ethernet,support PPPoE,DHCP&DDNS | |||
| USB port | 3 USB2.0 ,support mouse, flash memory,Remote HDD and DVD writer | |||
| Communication port | 1 RS232 port ,2 RS422 port | |||
| Power supply | AC 220/230V 50/60HZ or AC 100-240V 50/60Hz | |||
| Power(without HDD) | 42W/45W/48W | |||
| Weight | 11KG | |||
| Device dimension(W×D×H) | 440×450×100 mm (2U) | |||
| Shipping dimension(W×D×H) | 540×540×190 mm | |||
| Operating environment | Humidity:10～90% RH, Temperature:-10℃ ～55℃ | |||
